Straighter installation & usage guide

In this guide we'll go through how to properly install and use the Straighter on your machine.

Note!
The Straighter only works together with IGEMS CNC.



General Straighter info

• Male type A USB connection.
• 5m maximum cable length.
• IP 67 rated.
• Range: +-45°.
• 2 axis calibration.
• Body made from anodised aluminium.
• 50mm*64mm*19mm.



Installation & use

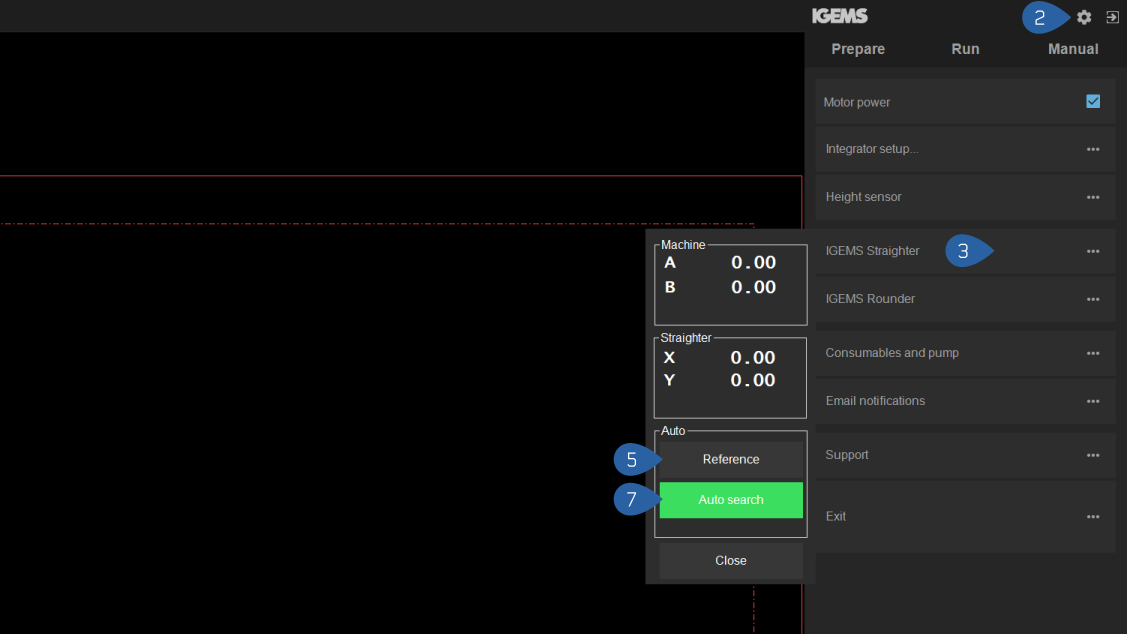

1. Connect the Straighter USB cable to the controller PC.
2. Go to the settings menu in IGEMS CNC.
3. Activate the Straighter app.
4. Place the Straighter on a level surface relative to the machine.
5. Reference the Straighter.
6. Mount the Straighter to your mixing tube.
7. Run the calibration.
8. Done!
