This command creates and inserts sheets onto the drawing area.
Standard sheets
When the command is started there is the following question:

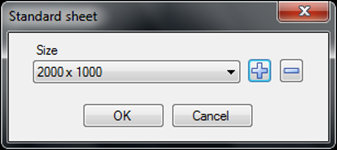

Press the spacebar or Enter for a list of standard sheets.
Modify list of standard sheet
Press the "plus" or "minus" buttons to modify the list of standard sheets.
Press the "plus" button to add a new sheet size.
Sheet properties
Select a size in the drop down list and press "OK". Add additional information about the sheet in the following dialog box:
Name
To track all sheets, it is important to use a unique name for the sheet. The "#" sign uses an automatic counter in the same way as on "Part create"
Info
This information is used by the postprocessors and in the reports.
Collar width
This value controls the distance between the edge of the parts and the edge of the sheets when using "Nesting" commands.
Show name
With these settings control height and the name of the sheet is visible on the lower left corner on the sheet.
Subtext
This setting controls the height of the text placed on the sheet when using the "Lock sheet" command.
Insert sheet
Press "OK" to insert the sheet into the drawing.
Pick the position for the lower left corner (A) then the orientation of the sheet (B) or (C).
Irregular sheets
If a sheet has complex geometry, be sure that the geometries are closed before starting the command.
Select the objects that describe the sheet.
The sheet can contain holes and it is also possible to use the "Text as names" function.
Edit sheet properties
To change any parameters on an existing sheet use the same command to change the parameters. Select the sheet instead of geometry. It is also possible to double click on the sheet without starting the command.
