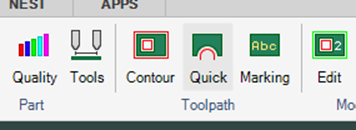

The "Quick" command can be used on all kinds of geometries but is mostly used when it is necessary to only cut contours partially. The command can be used to cut slits or contours. Slit geometry can be created by the "Other object" button in the "Create part" command.
Attribute
The attribute functionality is the same as for many commands like Quick, Marking, Holes, Toolpath in 3D-5X.
We use the attribute to be able to support special requests from users. What different attribute can do is completely up to the postprocessor. Of this reason it is not possible to exactly define what the attribute can do. One example in the drilling command is to use threading taps.
If you click on the "Plus" button, then you can add a new attribute.
The attribute will then always be visible in the drop-down list. It can be removed by the "Minus" button.
Piercing
You can use all kind of leads except when you use the "Slit" option. This option can only use the "Blind lead"
