The Limits command defines a rectangular plotting area by selecting two diagonal points, creating a reference boundary for the drawing area.
🔹 How to Use

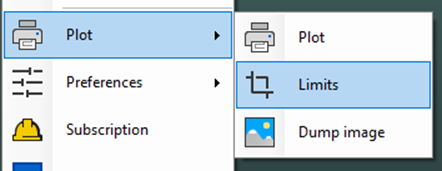

- Activate the command: Select Limits from the File menu
- Select first point: Click on one corner of your desired rectangular area
- Select opposite point: Click diagonally opposite to complete the rectangle
- Limits defined: Rectangular boundary is established and saved in the drawing
Grid reference: Limits area becomes visible when grid is activated
🧠Tips
- Plotting reference: Defines the standard plotting area for your drawings
- Grid boundary: Limits area controls where the grid is displayed
- Drawing standard: Establishes consistent boundaries for your work
- Saved with drawing: Limits settings are preserved when you save the file
