The Image command inserts raster images into IGEMS drawings as backgrounds or references. Images can be scaled and used as templates for creating vector geometry.
🔹 How to Use
- Activate the command: Select Image from the toolbar or use standard Open command.
- Select image file: Choose the image file to insert (PNG, JPG, BMP supported).
- Position image: Place the image in the desired location in the drawing.
- Scale as needed: Resize the image to the correct scale for your application.
Use as reference: Draw vector objects over the image for manufacturing.
🧠Tips

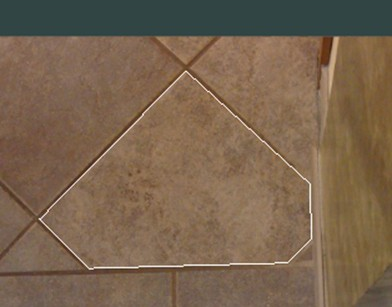

- Background reference: Perfect for tracing over existing images to create vector geometry.
- Scale correction: Ensure image is scaled correctly for accurate manufacturing dimensions.
- File formats: Supports PNG, JPG, and BMP image formats.
- Camera vs Image: Vision module will maintains consistent scale across the image; inserted images may have scale variations.
