The Pocketing command generates zigzag patterns within closed contours for milling operations. This creates the path pattern needed for material removal in pocket milling.
🔹 How to Use
- Activate the command: Select Pocketing from the toolbar.
- Enter angle: Specify the angle for the zigzag pattern direction.
- Enter step over: Define the distance between parallel cutting passes.
- Select contour: Choose the closed contour to apply the pocket pattern to.

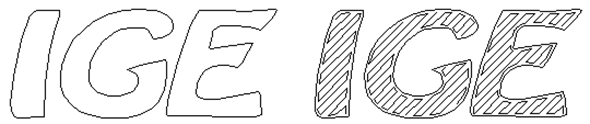

Pattern generated: Zigzag pattern is created within the boundary.
🧠Tips
- Closed contours required: Only works with completely closed geometry.
- Angle control: Pattern direction is controlled by the angle parameter.
- Step over spacing: Distance between passes affects material removal and surface finish.
- Milling preparation: Creates the basic pattern for pocket milling toolpaths.
