The Analyze command identifies gaps and overlaps in geometry by marking them with colored X symbols. This helps locate problems that need manual fixing before toolpath generation.
🔹 How to Use

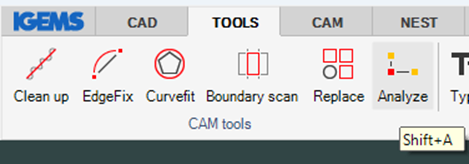

- Activate the command: Select Analyze from the toolbar.
- Automatic analysis: The command scans all geometry for problems.

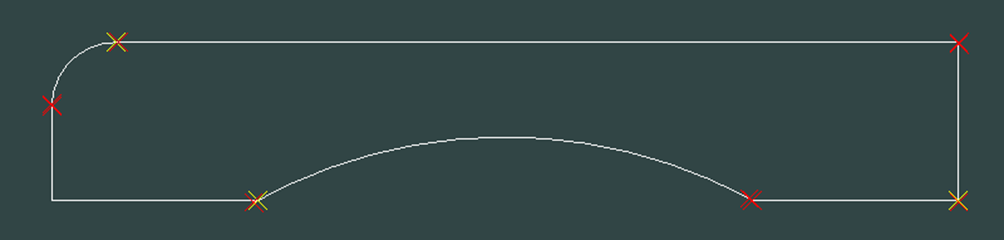

- Review markers: Red X marks gaps, yellow X marks overlaps.
- Fix problems manually: Use other commands to fix identified issues.
Clear markers: Run the command again to remove the X markers.
🧠Tips
- Visual feedback: Red X = gaps between objects, Yellow X = overlapping objects.
- Manual fixing: Use for complex drawings where automatic cleanup isn't sufficient.
- Quality assurance: Essential for ensuring geometry is ready for toolpath generation.
- Toggle markers: Run command again to clear the analysis markers.
