The Edgefix command replaces a portion of a polyline with either an arc or straight line to improve curve quality and smoothness. This is useful for refining imported or rough geometry.
🔹 How to Use

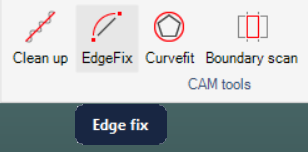

- Activate the command: Select Edgefix from the toolbar.
- Select start point: Click on the starting point (A) of the section to replace.
- Select end point: Click on the ending point (B) of the section to replace.
Choose replacement type:
- Click a point (C) to create an arc replacement
- Press Spacebar to create a straight line replacement
🧠Tips
- Arc replacement: Click a third point to define the curve of the replacement arc.
- Line replacement: Press Spacebar to replace the section with a straight line.
- Quality improvement: Perfect for smoothing rough or imported geometry.
- Selective fixing: Replace only problematic sections while keeping good geometry intact.
