The Clean Up command removes duplicate objects, overlapping geometry, and closes small gaps in selected geometry. This is essential for preparing drawings for manufacturing by eliminating redundant and problematic geometry.
🔹 How to Use

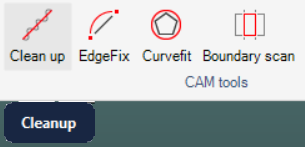

- Activate the command: Select Clean Up from the toolbar.
- Enter tolerance: Specify the tolerance for fitting new curves and closing gaps.
- Select objects: Choose all objects that need cleaning (or select all geometry).
Review results: Check the command line for information about objects removed.
🧠Tips
- Tolerance setting: Use small values like 0.001 for precision work.
- Duplicate removal: Automatically finds and removes identical overlapping objects.
- Gap closing: Closes small gaps between objects within the specified tolerance.
- Manufacturing prep: Essential step before creating toolpaths to ensure clean geometry.
- File size reduction: Can significantly reduce drawing file size by removing redundant objects.
