The Array command creates multiple copies of objects in rectangular (grid) or polar (circular) patterns. This is essential for creating repetitive layouts and patterns efficiently.
🔹 How to Use
- Select objects: Choose the objects you want to array.
- Activate the command: Select the Array tool from the toolbar.

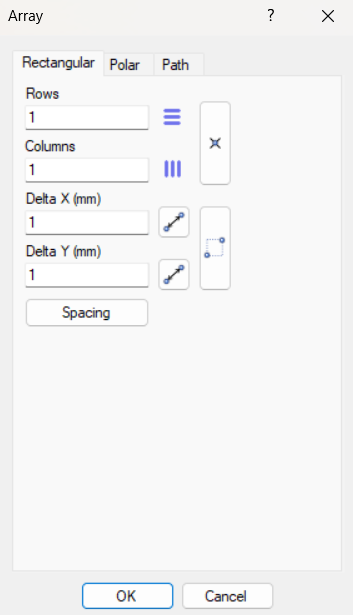

- Choose array type: Select either Rectangular or Polar from the dialog.
- Set parameters: Configure rows/columns and spacing for rectangular, or center point and angles for polar.
- Apply array: The objects are copied according to your specifications.
🔹 Rectangular Array Options
- Rows and columns: Enter the number of copies in X and Y directions.
- Delta spacing: Set the distance between rows and columns.
- Space option: Use object dimensions plus spacing for automatic spacing calculation.
🔹 Polar Array Options
- Center point: Define the center of the circular array.
- Method options: Choose how to define angles between copies.
- Rotation control: Objects can be rotated around the center or maintain their orientation.
🧠Tips
- Grid layouts: Rectangular arrays are perfect for creating bolt patterns and grid layouts.
- Circular patterns: Polar arrays work well for spoke patterns and radial layouts.
- Spacing vs Delta: Use spacing for gaps between objects, delta for center-to-center distances.
- Base point for polar: Define a base point for non-rotated polar arrays.
