The Info command provides detailed information about selected objects, including dimensions, areas, and object properties. This is essential for analyzing geometry and calculating material requirements.
🔹 How to Use
- Activate the command: Select the Info tool from the toolbar.
- Select objects: Click on the objects you want to analyze.

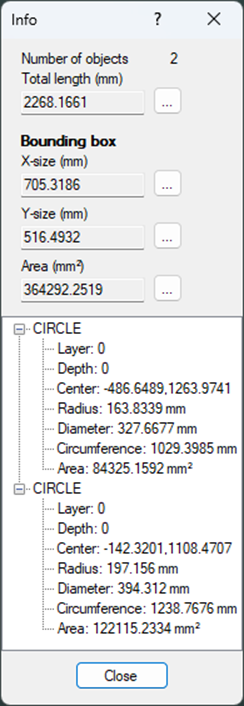

- Review information: The dialog shows selection summary and individual object details.
- Highlight objects: Click on items in the object list to highlight them on screen.
🧠Tips
- Total calculations: The upper area shows combined length, area, and bounding box information.
- Individual details: The lower area provides specific information for each selected object.
- Visual feedback: Selected objects are highlighted with bounding boxes on screen.
- Cost estimation: Length and area information can be used for material cost calculations.
