The Dimension command automatically creates measurements for objects in your drawing. The command intelligently switches between horizontal, vertical, and aligned dimensions based on your selections.
🔹 How to Use

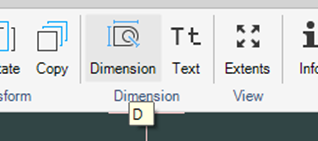

- Activate the command: Select the Dimension tool from the toolbar.
- Select objects: Click on objects you want to measure.
- Position dimension: Move cursor to position the dimension line and click.
- Override orientation: Press H (horizontal), V (vertical), or A (aligned) to force specific orientation.
🧠Tips
- Automatic detection: The command automatically chooses the most appropriate dimension type.
- Force orientation: Use H, V, or A keys to override automatic orientation selection.
- Dimension styles: Configure dimension appearance using the Dimension Style command.
- Layer control: Set up automatic layer assignment for dimensions in your template.
