The Define Attributes command creates text strings within blocks that can be modified when the block is inserted. This is perfect for creating dynamic blocks with variable information.
🔹 How to Use
Create base figure: Draw your block geometry and add text that will become an attribute.
- Activate the command: Select Define Attributes from the toolbar.
- Select text: Click on the text object you want to make variable.

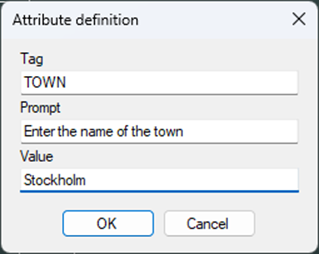

- Enter prompt: Type the prompt that will appear when inserting the block.
Set default value: Enter a default value for the attribute.
- Save as block: Use Create Block to save the figure with attributes.
Insert with attributes: When inserting, you'll be prompted to enter attribute values.
🧠Tips
- Title blocks: Perfect for creating title blocks with variable project information.
- Template usage: Define attributed blocks in templates for consistent use.
- Multiple attributes: One block can have multiple variable text elements.
- Default values: Provide sensible defaults to speed up block insertion.
