The Join command combines multiple separate objects into a single polyline. Objects must have endpoints that are within a specified tolerance distance to be successfully joined together.
🔹 How to Use

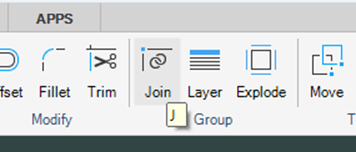

- Activate the command: Select the Join tool or press J.
- Select objects: Choose all the objects you want to join together.
- Set tolerance: Press "A" to enter the maximum distance allowed between endpoints for joining.
- Review results: Check the command line area for information about successful joins.
🧠Tips
- Tolerance matters: Set appropriate tolerance - too small may miss connections, too large may join unintended objects.
- Endpoint proximity: Objects must have start or endpoints closer than the tolerance to join.
- Command feedback: The command line shows results and statistics about the join operation.
- Opposite of Explode: Use the Explode command to reverse the join operation.
