The Smooth Connect command joins two objects with a biarc - a smooth curve formed from two circular arcs that share the same tangent at their connection point.
🔹 How to Use
- Activate the command: Select Smooth Connect from the toolbar.

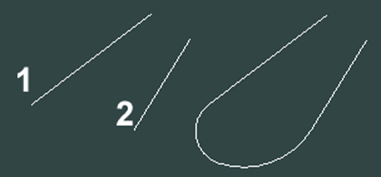

- Select first object: Click on the first object to connect.
- Select second object: Click on the second object.
- Automatic connection: Two arcs are generated to create a smooth connection between the objects.
🧠Tips
- Biarc geometry: Uses two circular arcs for mathematically smooth connections.
- Tangent continuity: Arcs share the same tangent direction at their meeting point.
- Smooth transitions: Creates visually pleasing connections between disparate objects.
- Automatic calculation: System automatically calculates the optimal arc geometry.
