The Fillet command creates smooth, tangential arcs between two intersecting objects. This is essential for creating rounded corners and smooth transitions.
🔹 How to Use

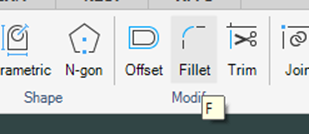

- Activate the command: Select Fillet tool or press F.
- Enter radius: Specify the fillet radius size.
- Select objects: Click on the two objects to fillet between.
- Polyline option: Type P to fillet all corners of a polyline at once.
Change option: Use Change option to replace existing arcs between objects.
🧠Tips
- Tangential arcs: Creates smooth transitions that are tangent to both objects.
- Polyline efficiency: Use P option to fillet all corners of a polyline in one operation.
- Replace existing: Change option replaces existing arcs with new fillet radius.
- Radius consistency: Set radius once and fillet multiple corners with the same size.
